Filling and Closing Machine from Colanar

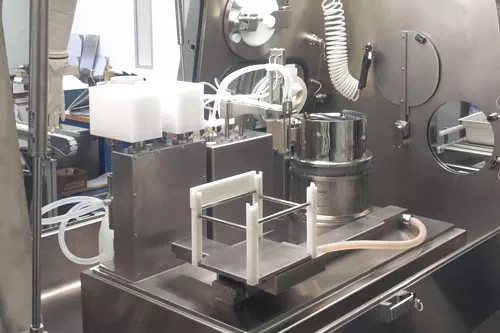

Filling and Closing Machine – FSVSpecifically developed with pharmaceutical and biotechnology filling applications in mind, the FSV allows its users to process small to medium size batches with all the conveniences a full scale production machine would offer. This filling system is suitable for operation in conventional Laminar Flow hoods in laboratories.
The operator inserts a syringe nest into the nest carrier and then starts the filling process via the touch screen HMI. The FSV will automatically locate the syringe underneath the filling needle and lower the needle into the container. The FSV flushes the syringe with nitrogen before it starts the filling process automatically. Simultaneously to the filling process a rubber stopper is placed into the syringe that was previously filled using Colanar’s unique vacuum stoppering system. Once the syringe is filled, the needle will retract and the FSV will index the syringe nest again to the next filling position. The FSV is also available for vials and cartridges.
Technical specifications
- Output: up to 25 / min
- Filling range: 50µl to 20 ml
- Range:
- 0,5 - 20 ml nested syringes
- 2 - 20 ml nested vials
- 1,5 - 3 ml nested cartridges
